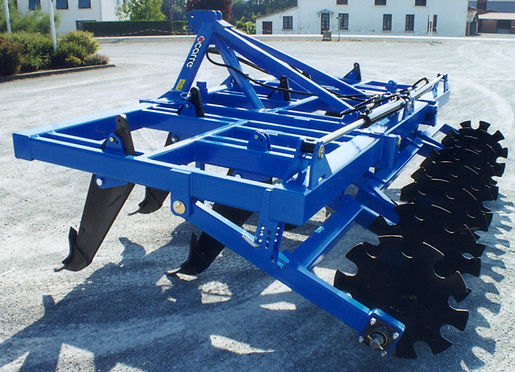

DECOMPAK
Subsoiler
DECOMPAK is used for decompacting any type of soil, under the plough pan up to 40cm, with a clearance under the frame of 800mm.
Basic Information
-
Tubular frame 140mm x 8mm and 120mm X 60mm X 8mm.
-
3 point pin linkage between yokes No. 2/3
-
Clearance under frame 800 mm
-
Pitch between tines: 450mm
-
Power required per tine: 20 to 25 HP
-
Signalling as an option
-
High - resistance steel tines, thickness 25mm.
-
Possible to attach tines at 2 heights 650 and 700 and 2 possible angles.
-
Pointed or patented finned ploughshares on DECOMPAK
-
Safety with pre-sheared bolt
FOLDING
CHASSIS
FIXED
FIXED
WIDTH
1m35
2m25
3m15
4m05
4m05
NUMBER OF TINES
3
3
3
9
9
FIXED
FOLDING
FIXED
FOLDING
The Tines
Rear Equipment
Double corrugated disc roller
diameter 510, 125 mm pitch
8 square bar, 25mm roller,
diameter 445.
Notched disc roller diameter
620, 620mm.
40mm square coil spring roller, diameter 580.
Options
Pair of wheels 10 ply tires diameter 535 x 168 ( if no rear equipment)
Notched disc roller diameter 620,
150mm pitch with disc scrapers.
CARRE strong points
Safety
Efficiency
-
shearing of a bolt if force on the time is too high
Durability
-
solid frame, entirely welded, including the coupling and the time holders, no risk of play.
-
3 point anti-rotation pin numbers 2 and 3
-
coupling yoke thickness 20 mm.
-
Option to fit tines higher on the front or rear in order to increase depth gradually and reduce the power needed.
Comfort
-
bolts are pre-sheared, they are sheared cleanly and are easy to change
-
adjustment of rollers by pins on multiple position sector, simplicity and speed of adjustment.
Polylab
Subsoiler
DECOMPAK is used for decompacting any type of soil, under the plough pan up to 40 cm, with a clearance under the frame of 800mm.
Basic Information
-
Tubular frame 140mm x 8mm and 120mm X 60mm X 8mm.
-
3 point pin linkage between yokes No. 2/3
-
Clearance under frame 800 mm
-
Pitch between tines: 450mm
-
Power required per tine: 15 to 20 HP
-
Signalling as an option
The Tines
CHASSIS
WIDTH
1m35
2m25
3m15
4m05
4m05
-
High - resistance steel tines, thickness 25mm.
-
Possible to attach tines at 2 heights 650 and 700 and 2 possible angles.
-
Pointed or patented finned ploughshares on DECOMPAK
-
Safety with pre-sheared bolt
FIXED
FIXED
FIXED
FOLDING
FOLDING
NUMBER OF TINES
3
3
3
9
9
Rear Equipment
Double corrugated disc roller diameter 510 125 mm pitch.
Notched disc roller diameter 620,
620 mm.
8 square bar, 25 mm roller,
diameter 445.
40 mm square coil spring roller, diameter 580.
Options
Pair of wheels 10 ply tires diameter 535 x 168 ( if no rear equipment)
Notched disc roller diameter 620, 150 mm pitch with disc scrapers.
