CROPS and GRASSLAND MAINTENANCE
Let your animals benefit from aerated, levelled and moss free grassland.
PRAIRIAL
With the aim of providing livestock producers with a real solution for grassland management, we have developed an implement that is unique and meets all your requirements for your animals well-being.
Why aerate? Tractors, rain and the movement of your animals cause grassland compaction.
It impedes the balance between minerals, air, water and organic elements.
By aerating, PRAIRIAL, releases nitrogen, facilitates the incorporation of water and slurry, developing underground activity (worms, microbial activity, etc.) and combats dry periods and allows nutrients to access the roots.
PRAIRIAL can be combined with SEMLOC
for total or partial replanting of the meadow.
-
Planting the crop by broadcast sowing for meadow regeneration.
-
200 or 400 litre hopper with grooved distributor allowing an application rate of 8 to 100 kg/ha either driven by DPA wheel or by radar which allows to adapt the dose of seed according to the soil from the tractor cabin.
-
Blower driven by 1 or 2 electric motors on hydraulic blower depending on application width
-
Access ramp included
SEMLOC (more information bottom of page)

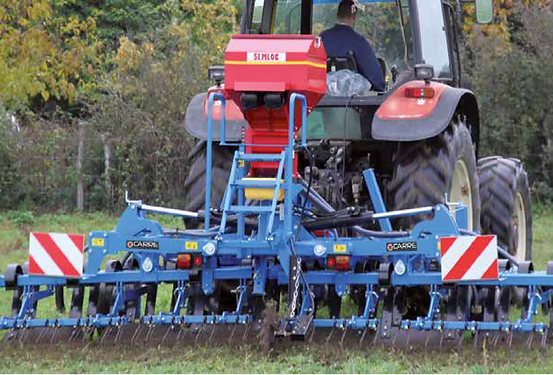

Image Shows SEMLOC 200 Litre Hopper
-
The PRAIRIAL allows 4 actions in only one pass at 15 km/hr.
-
Scarify to open the soil and promote soil and air exchange.
-
The knives can be manually or hydraulically adjusted and can pivot if necessary.
-
Level through crenelated blades to stagger and scour to promote good bursting to diffuse earth and natural fertilizer.Foam to evacuate dead mosses and grasses.
-
Mounting on spring blades makes it possible to withstand considerable forces.
-
The staggered arrangement of knives and levelling blades facilitates the evacuation of debris.
-
Sow to re-implant the grasslands on the fly at the same time.
-
Available from 3M to 6M.
BASIC INFORMATION:
-
3 point linkage with anti-rotation pins, Category No 2/3, entirely mechanically welded to prevent play.
-
Tubular frame 100 x 8mm, 120 x 60 x 8 and 200 x 100 x 5mm, designed to resist the heavy stressesrequired for use on pastures.
-
Folding articulations collared for better rigidity.
-
Polyamide collars and slides to avoid steel to steel contact for the moving parts.
-
Oscillation of extensions on folding models to adapt to differences in level on the terrain.
-
Hydraulic locking valve in the work and transport positions for maximum safety.
-
Folding at 2.50 m for greater comfort and safety during transport.
-
Easy adjustment of depth control wheels by screw handle with graduated rule.
-
Stands for storing the machine in the folded position.
-
Signalling included on the folding model.

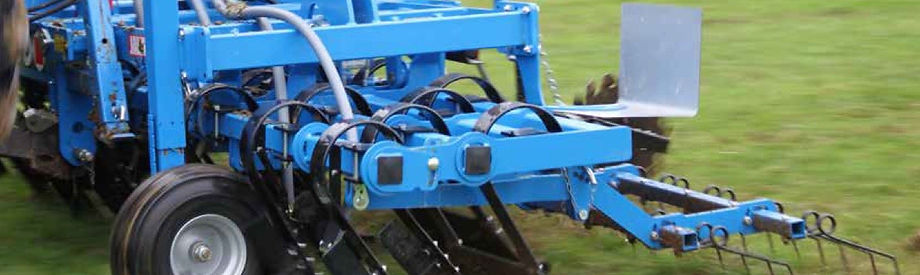

THE CUTTERS:
Steel and boron reversible
Non-reversible carbide cutter for abrasive soils
Double cutter to increase scarification density
-
On the front 2 bars, there's cutters on a leaf spring with a pitch of 200 or 250 mm for scarification.
-
Adjustment of the aggression of the cutters by push with screws
-
Notched levelling blades giving maximum aggression for levelling molehills and spreading manure with the harrow.
-
Assembly of levelling blades and cutters on flat leaf spring 80 x 12 to support important stresses and in staggered rows to improve the evacuation of stones and debris.
-
At the rear, 2 rows of curry combs 8 mounted on square tubes with adjustable aggression to remove moss and pull out dead plants.
-
Adjustment of the comb depth by sector pins making it possible also to work in the floating position.
MORE FEATURES:
Unit counter on wheel
Unit counter on SEMILOC
3 point mechanical lift for SARCLERSE
Linkage advanced by 150mm
PRAIRIAL Reversible Wear Blade
SEMLOC
for easy planting
-
Planting the crop by broadcast sowing for meadow regeneration.
-
200 or 400 litre hopper with grooved distributor allowing an application rate of 8 to 100 kg/ha either driven by DPA wheel or by radar, which allows it to adapt the dose of seed according to the soil from the tractor cabin.
-
Blower driven by 1 or 2 electric motors on hydraulic blower depending on application width
-
Access ramp included

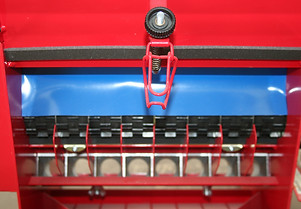

Semloc: Sowing seed by surface broadcasting
-
Seed rates from 2 to 100 kg / hectare
-
Automatic mechanical or radar seed rate control.
-
Delivered with 2 feeder rollers (small or large grains)
Semloc: 400 L Hopper
-
Pneumatic distribution with hydraulic blowing
-
Centralized flow insured by radar
-
Hopper access platform
Semloc: 200 L Hopper
-
Pneumatic distribution with electric or hydraulic blower (according to the model)
-
Flow rate proportional to the progression, mechanical drive - DPA Wheel
-
Hopper access platform
